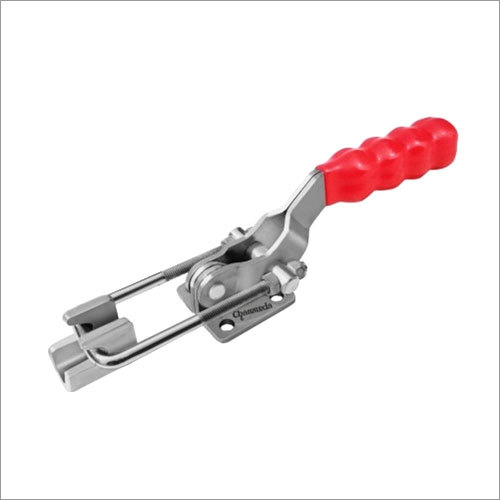

We are a well-established firm that has made its presence in the industry, by manufacturing and supplying Pull Action Toggle Clamps. These are used for sealing chamber doors, mold closures and access doors. We manufacture these clamps at our sound production unit using high quality materials. Clamps provide a powerful closing force, positive holding and convenient operation. Clients can avail our Pull Action Toggle Clamps in different sizes and specifications as per their requirements.
Features:
Product details
Holding Capacity |
100 kg, 200 kg. |
Pressure capacity |
100 kgs to 3000 kgs |
Weight in Kg |
0.120, 0.180 |
Specification
Model No. |
|
|
Mount. |
"U" Bolt |
"U" Bolt |
Height |
Latch Plate Base |
|
Thrd. Ad. |
Hole |
Thrd. |
Draw. |
Holding |
Weight |
|||
|
A |
B |
C |
D |
E |
G |
H |
J |
K |
L |
M |
N |
S |
|
|
|
|
PA-PS |
12 |
20 |
30 |
25 |
20 |
5 |
30 |
30 |
25 |
100 |
- |
- |
5.5 |
10 |
25 mm |
100 kg. |
0.120 |
PA-4H |
15 |
25 |
35 |
35 |
25 |
5 |
40 |
35 |
27 |
115 |
22 |
18 |
5.5 |
20 |
40 mm |
200 kg. |
0.180 |
